PRODUCTS DETAILS

Basic Info.

Model NO.
HR
Voltage
380V/50Hz 3phase Can Be Customized
Load Capacity
1000-2000kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Machine Item
Cone Yarn, Hank Yarn Dual-Purpose Dryer
Machine Painting Color
Be Made According to Your Need
Price
Lowest Reasonable Offers in The Market
After-Sales Service
24 Hours Technical Support by Email, Call, Video
Warranty Time
Offer Free Spare Parts and Service Within 12 Month
Working Experience
32 Years′ Experience
Delivery Date
Fast Delivery in 30 Days
Power(W)
45kw
Length of Tube
1200-2000mm
Steam Working Pressure
0.3MPa
Heating
Direct Steam/Indirect Steam
Dimension(L*W*H)
13860*2980*2650
Length of Hank
820mm
Max.Working Temperature
98 Degree
Transport Package
Standard Package or Nude Package Customized
Specification
Dimension(L*W*H): 13860*2980*2650
Trademark
HUARUI
Origin
Qingdao City
HS Code
8451290000
Production Capacity
100/Week

Product Description

Brief introduction:

HYDRO-EXTRACTING
Pressurized air (5-5.5 kg/cm²) in the tank is at first circulated OUT-IN for the purpose of squeezing moisture in cone/cheese. Moisture remained in the air circulation is condensed to be discharged rapidly and then separated perfectly from air by means of mist-separator. No special hydro-extractor is required.


RAPID DRYING & CLEAN DRYING
After hydro-extraction the air in the same tank is circulated IN-OUT under high pressure. Clean air closely shut out of the outside is heated and is fed to drying tank. Air passed through drying tank becomes saturated temperature and is sent to condenser. Air continues to be circulated in this closed system. Super rapid and clean dry is available, not being influent from atmospheric temperature, moisture, dust and so on. Mounted vertical & cylindrical condenser which is highly efficient and of direct cooling system. Maintenance is quite easy.

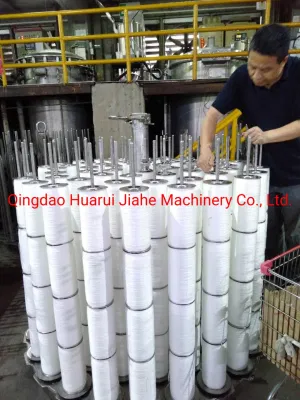

Detail machine pictures, all photoes are for 100% real shooting ! For more pictures, video and details, please email me!

Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China
Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China

SAVING ENERGY AND RESOURCES

The epock-making construction of cylindrical direct cooling condensersaves consumption of cooling water and steam very much, and newly designed blower with consideration of saving energy reduces max. 25% of its electrical power consumption. Additional device for heat recovery from condensed drain can be quoted separately as customer's option.

STAINLESS STEEL MADE
The main parts such as drying tank, condenser and flow pipings, are constructed with stainless steel. Dryer can be kept clean from rusting troubles in its long term operation.


CONTROL PANEL
FOR DGRDKS HIGH PRESSURE RAPID DRYER,THE CONTROLLER WILL PRECISELY CHECK AND CONTROL ALL THE IMPORTANT PARAMETERS INFLUENCING BOTH ECONOMY AND EFFICIENCY OF THE DRYING PROCESS.
THESE IMPORTANT PARAMETERS INCLUDE:
AIR TEMPERATURE TO THE MATERIAL
AIRTEMPERATURE LEAVING THE MATERIAL
TEMPERATURE OF COOLING WATER INSIDE THE CONDENSER
AIRSPEED THROUGH THE MATERIAL THUS THE PRESSVRE
DIFFERENCE BETWEEN,THE MATERIAL IN AND THE MATERIAL-OUT.

AS A RESULT,ECONOMY AND EFFICIENCY OF DRYING IS ASSURED.

Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China

TECHNICAL DATA ACCESSORIES

Series Model DGRDKS-200 DGRDKS-500 DGRDKS-1000
Length 2900 2900 3013
Width 5000 5000 5440
height 2600 2630 2690
Platform height 900 900 900
Crane height 4800 4800 4800


OUR ADVANTAGES
1) Excellent, high corrosion-resistant stainless steel
2) Ultra-low bath ratio , Wisdom, energy saving and environmental protection
3) Humanized design Automatic lifting bracket
4) Automatic feeding system Precision feeding
5) Direct heating and indirect heating combined
6) Won the invention and utility model patent certificate

Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China

Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China
Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China

Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China

Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China


Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China
Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China
Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China
Better Dyeing Machine, Cone Yarn, Hank Cotton, Polyester and Woolen Yarn Dual-Purpose Dryer Made in China
